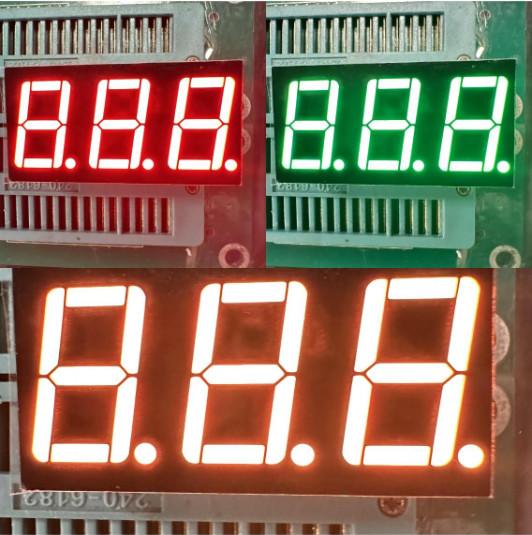

Bi-Colour Red And Green 3 Digit 0.56" 7 Segment LED Display Common Cathode For Temperature Controlle

Name: BiColour Red And Green 3 Digit 056quot 7 Segment LED Display Common Cathode For Temperature Controlle
Brand: LIGHTBO
Price: 1 USD

China Bi-Colour Red And Green 3 Digit 0.56" 7 Segment LED Display Common Cathode For Temperature Controlle wholesale

Brand Name : LIGHTBO

Model Number : LB30561NRG1B-D

Place of Origin : SHENZHEN，CHINA

Certification : ISO9001&ROHS

MOQ : 1000

Packaging Details : EPE+Carton

Delivery Time : 15-20days

Payment Terms : TT , Western Union

Supply Ability : 50000pcs/days

Digital Height : 14.2mm (0.56inch)

Package Dimensions : 37.6*19*8mm

Polarity : Common Cathode

Emitting Colour : RED/GREEN

Display Brightness : High

Digits : 3

Material : PVC , Epoxy resin,LED Chip

Usage : Indoor,Outdoor,Indoor/Outdoor

Application : Temperature Controlle

Operating temperature : -40~80 ℃

Life span : 80000hours

Forward Current : 20mA

Contact Now

Code: Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=20mA	20		40	mcd
Spectrum With Of Half Value	△λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	525		530	nm

Code:Ultra Bright Red

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=20mA	25		35	mcd
Spectrum With Of Half Value	△λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	625		635	nm

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40～+120	℃
Storage Temperature Range	Tstg	-40～+120	℃
Solder Temperature(3 sec)	Th	260	℃

LED working lifetime 80,000hrs, Absolute Maximum Rating at Ta=25℃

Product Feature:

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Long lifetime

Meet RoHS/REACH compliant

Applications:

Audio equipments or instrument panels

Home electronic appliances

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on
